SmCo Magnet
ʻO ka wehewehe pōkole:
Ke hoʻomohala nei ka hui Magnet Power i nā magnet SmCo no nā makahiki he nui a loaʻa iā ia kahi ʻike hohonu o ka ʻepekema waiwai a me ka ʻenehana ʻenekinia. Hiki iā mākou ke hoʻolālā i nā magnet SmCo kūpono loa a hana i ka waiwai no nā mea kūʻai aku.
ʻO nā huahana samarium-cobalt nui i hoʻomohala ʻia, i hana ʻia e Magnet Power e hōʻike ʻia penei:
Mākēneki 1:SmCo5(1:5 18-22)
Mākēneki 2:Sm2Co17(H moʻo Sm2Co17 )

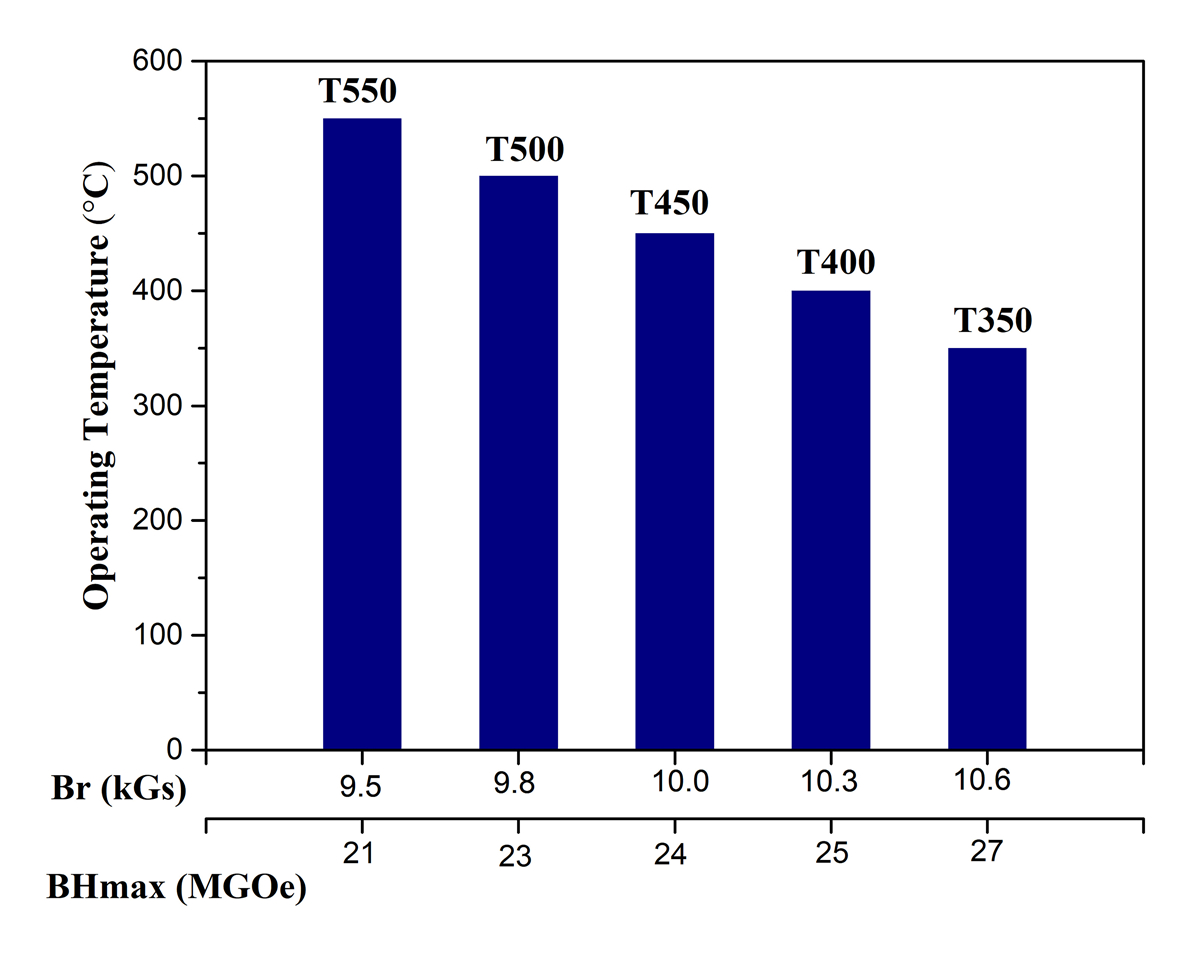

Mākēneki 3:Palena wela kiʻekiʻe Sm2Co17(T series Sm2Co17, T350-T550)

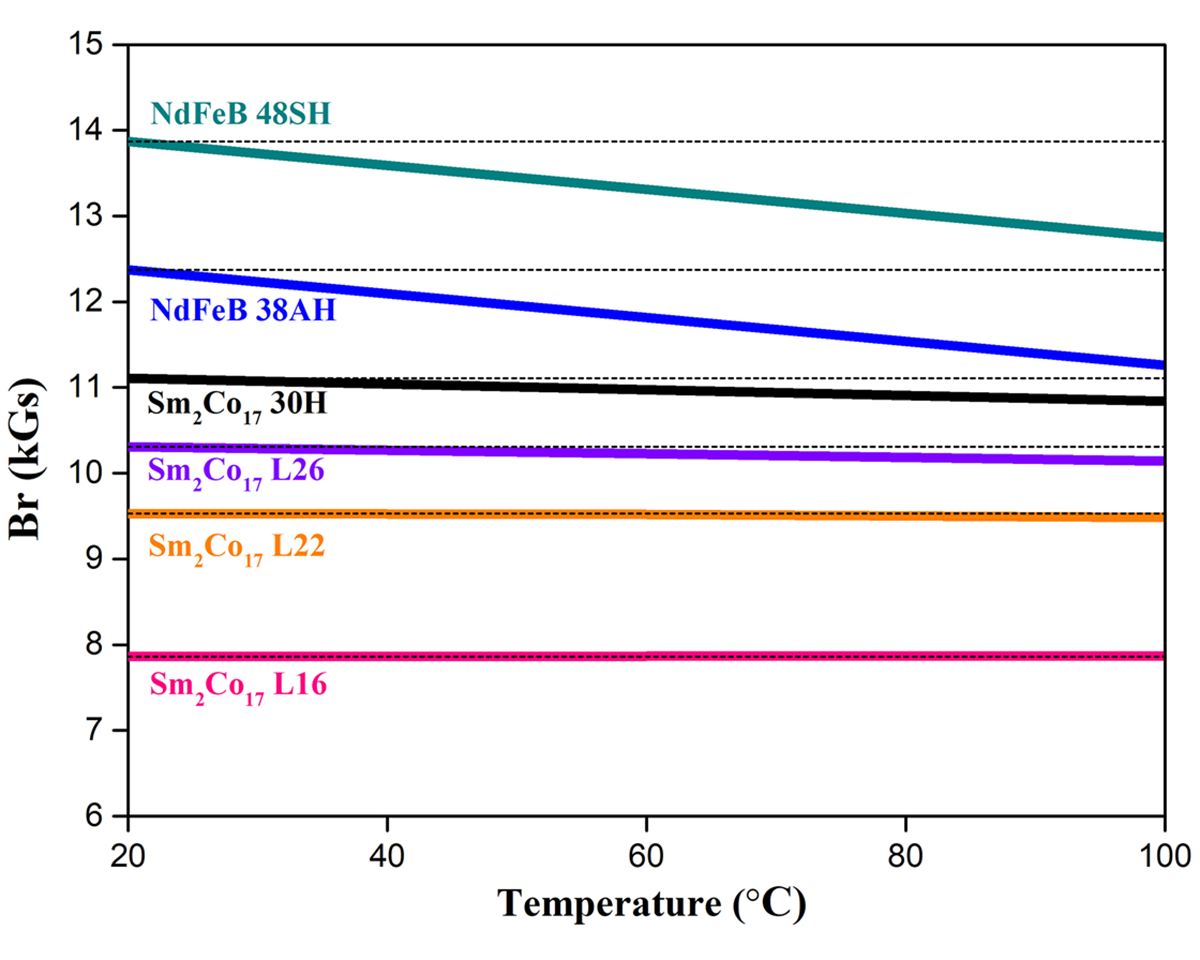

Mākēneki 4:Hoʻopaʻi ʻia ka mahanahana Sm2Co17(L series Sm2Co17, L16-L26)
Ua hoʻohana nui ʻia nā huahana samarium cobalt o Magnet Power i:
Nā Motors māmā holo kiʻekiʻe (10,000 rpm+)
Na Lapaau Lapaau a me na Lako,
Kaʻa Kaʻaahi
Kūkākūkā
ʻImi ʻepekema
H moʻo Sm2Co17
T moʻo Sm2Co17
L moʻo Sm2Co17

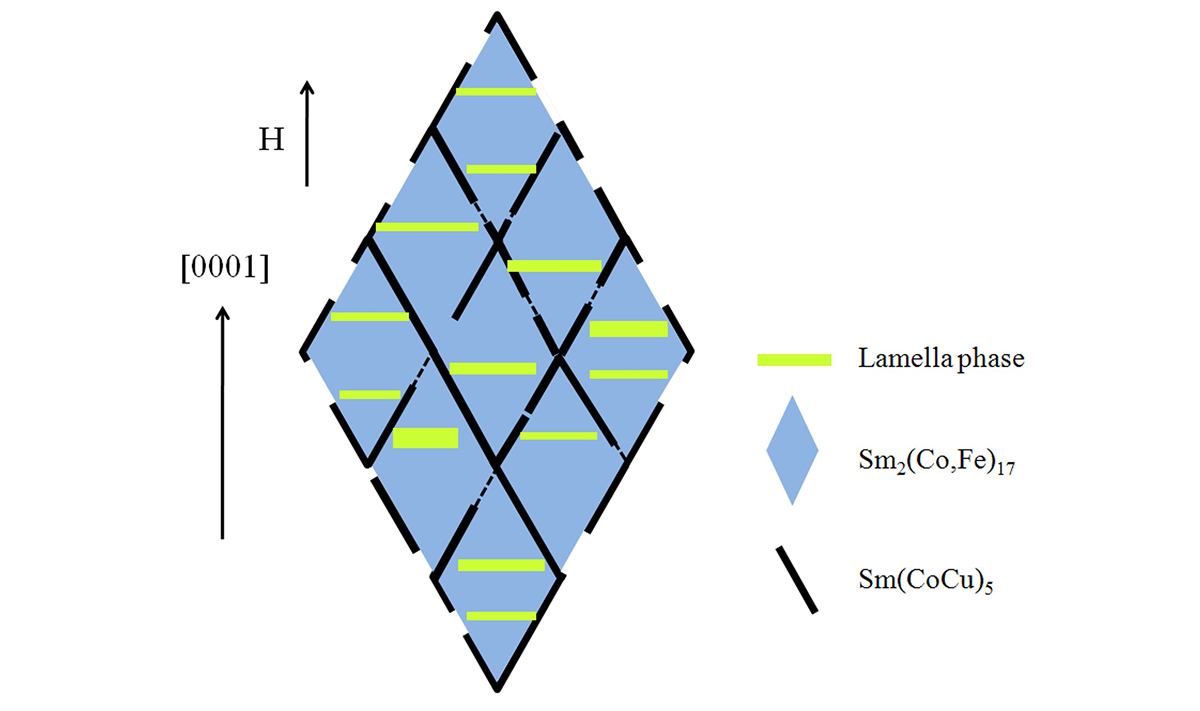

ʻO ka haku mele a me ka microstructure control nā kumu nui o ka hana ʻana o ka samarium cobalt magnet a hoʻoholo i nā waiwai magnetic. Ma muli o ke ʻano maʻamau ʻole, he mea nui ka hoʻomanawanui a me ke ʻano o nā magnet samarium cobalt.

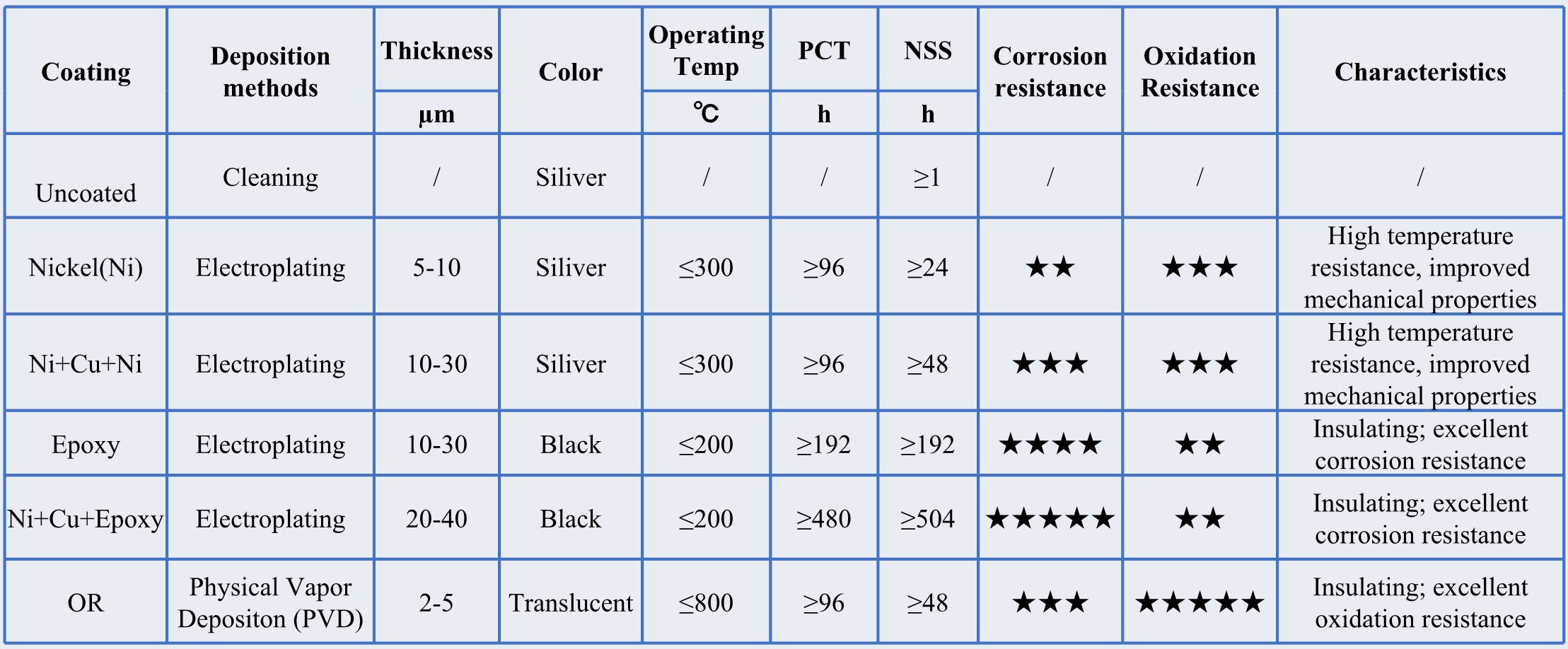

● Hiki ke hoʻomaikaʻi maikaʻi i ka uhi ʻana o Ni-ma muli o ka ikaika kulou o Sm2Co17 ~ 50%
● Hiki ke hoʻopili ʻia nā uhi Ni-based a hiki i 350 ℃ no ka hoʻomaikaʻi ʻana i ke ʻano o ka ʻili a me ke kūpaʻa lōʻihi
● Hiki ke hoʻopili ʻia ka uhi epoxy a hiki i ka 200 ℃ (manawa pōkole) no ka hoʻoikaika ʻana i nā waiwai mechanical, ka pale ʻana i ka corrosion, a e hoʻemi i ka eddy-current a me ke kāohi ʻana i ka piʻi ʻana o ka wela.

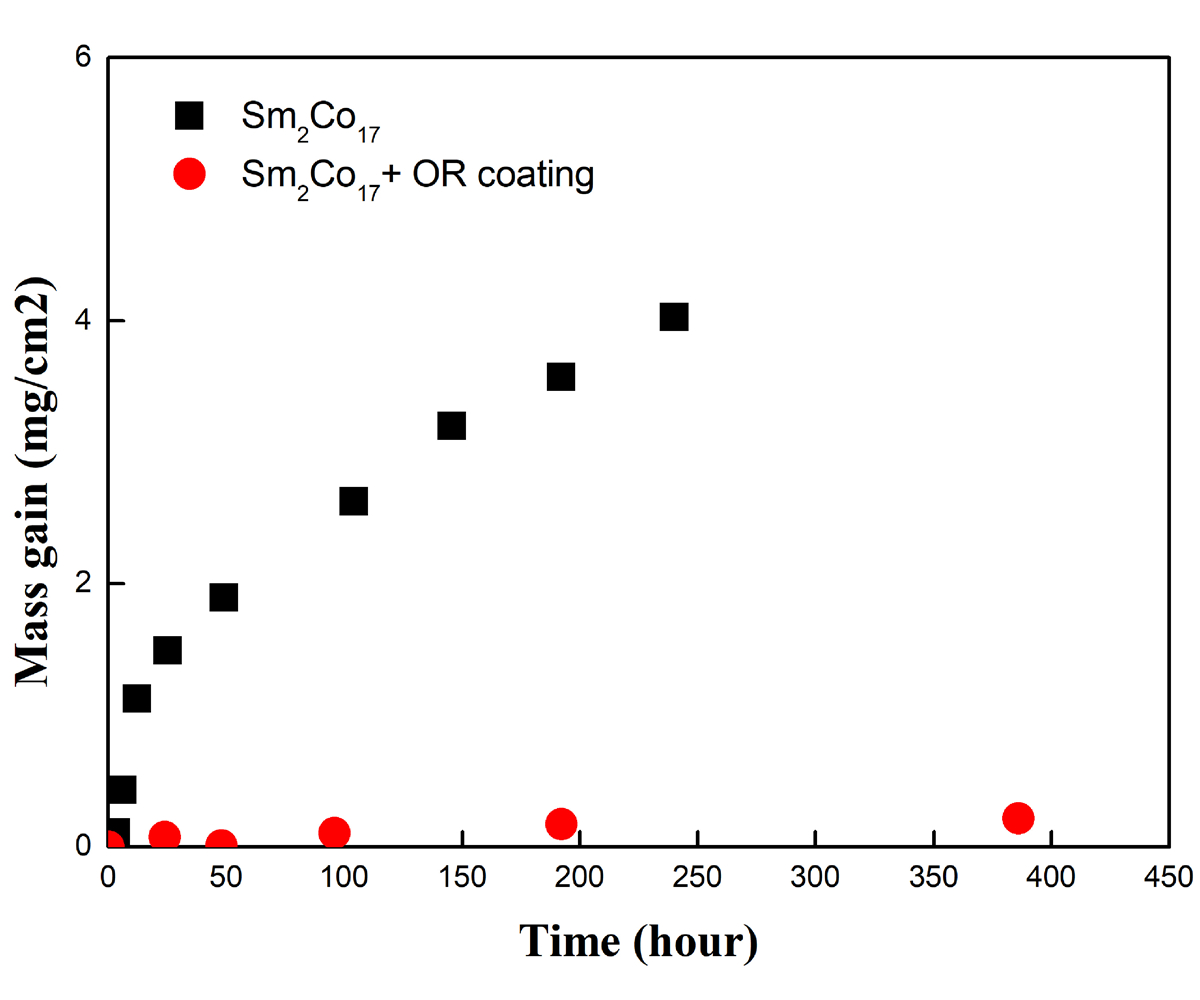

● Ma ke kiʻekiʻe kiʻekiʻe wela 500 ℃ i ka lewa, e hoʻopilikia ka papa degradation i nā waiwai magnetic. Hiki ke hoʻomaikaʻi maikaʻi ka uhi ʻana i ka paʻa lōʻihi o SmCo ma 500 ℃

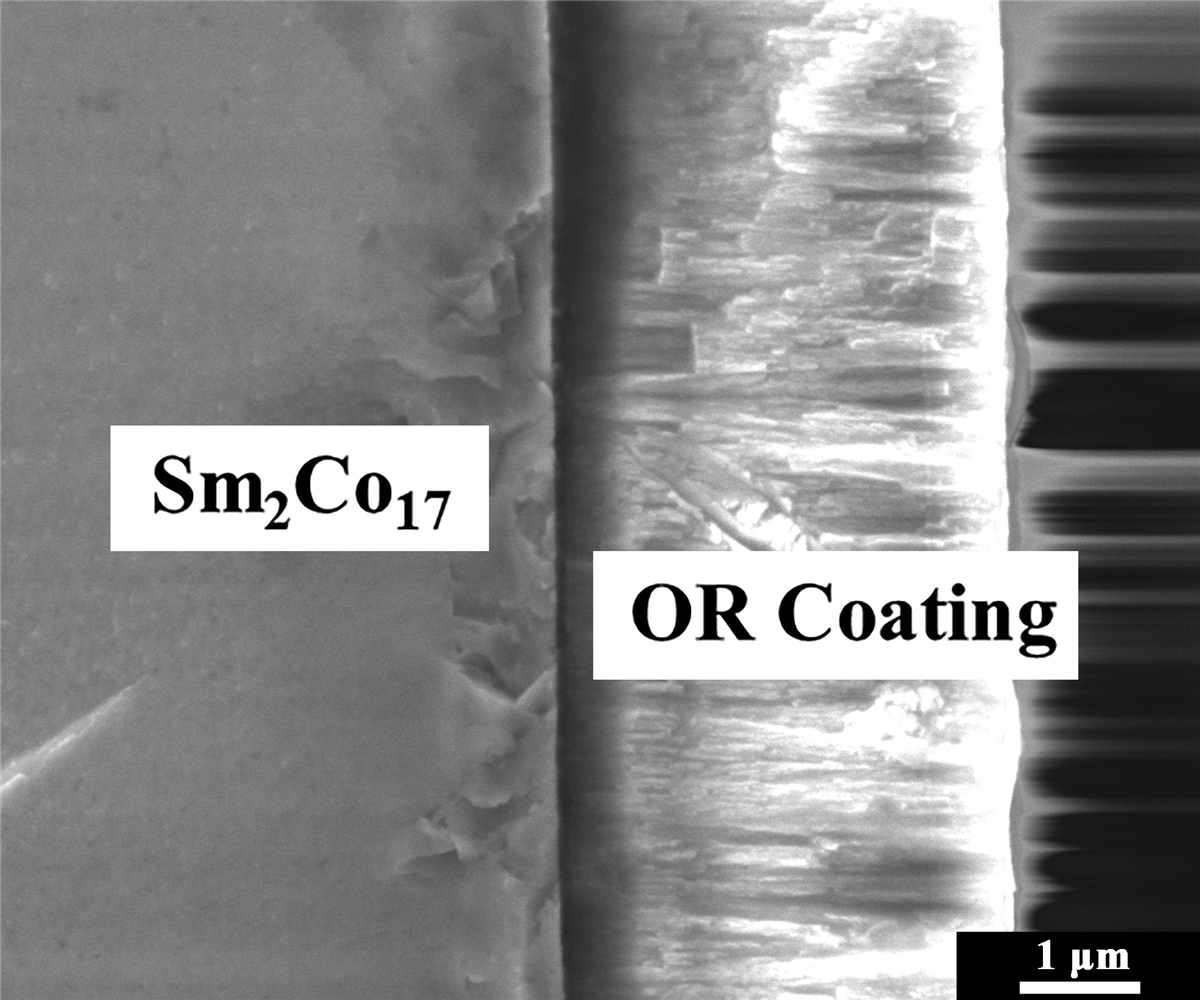

● Ma muli o kona mau waiwai insulation maikaʻi loa, hiki i ka uhi OR ke hoʻemi i ka eddy-current a hoʻopaʻa i ka piʻi ʻana o ka mahana.
● Pili kaiapuni.
